Pneumatic Valve Positioner
20160 INR/Piece
Product Details:
- Product Type Electro Pneumatic Valve Positioner (Rotary / Linear)
- Weight 1.8 Kilograms (kg)
- Air Consumption 5.0 LPM (1.4 Kgf/cm²) Supply
- Click to view more
X
Price And Quantity
- 1 Piece
- 20160 INR/Piece
Product Specifications
- Electro Pneumatic Valve Positioner (Rotary / Linear)
- 1.8 Kilograms (kg)
- 5.0 LPM (1.4 Kgf/cm²) Supply
Trade Information
- ICD - Ahmedabad / JNPT - Nhava Seva
- Western Union, Telegraphic Transfer (T/T), Cheque, Cash in Advance (CID), Cash Advance (CA), Cash Against Delivery (CAD)
- 2 - 3 Days
- Yes
- Contact us for information regarding our sample policy
- Plastic Polythene Bag / Corrugated Box
- Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
- All India
Product Description

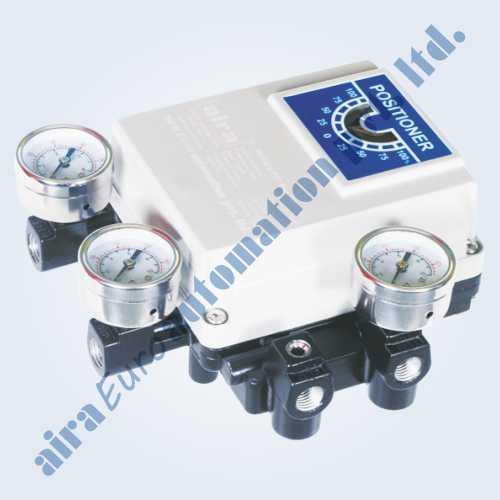

Pneumatic Valve Positioner
Pneumatic Valve Positioner is designed to offer stable and accurate control of rotary and linear valves. It is operated with cam characterized air pressure control utilizing a low friction spool valve to accurately drive rotary and linear pneumatic actuators, It is manufactured using superior grade basic materials under the strict vigilance of adept professionals. Apart from this, Pneumatic Valve Positioner can be availed from us at reasonable cost.
Technical Specification
Input Signal : 3 ~ 15 PSI (0.2 ~ 1.0 Kgf/cm²)
Supply Air Pressure : 100 PSI Max
Standard Stroke : 10 ~ 80mm
Air Piping Connection : 1/4" NPT
Temperature : -20 °C to 70 °C
Pressure Gauge : Stainless Steel
Explosion Proof : Exia II BT6, Exdm II BT6
Protection : IP 66
