Pneumatic FEP - PFA Lined Floating Ball Valve Pneumatic FEP - PFA Lined Floating Ball Valve Pneumatic FEP - PFA Lined Floating Ball Valve Pneumatic FEP - PFA Lined Floating Ball Valve

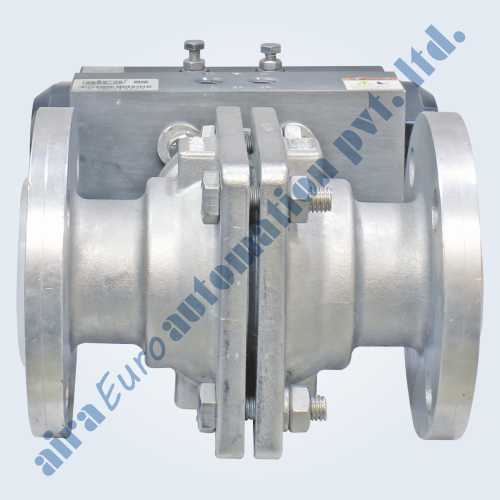

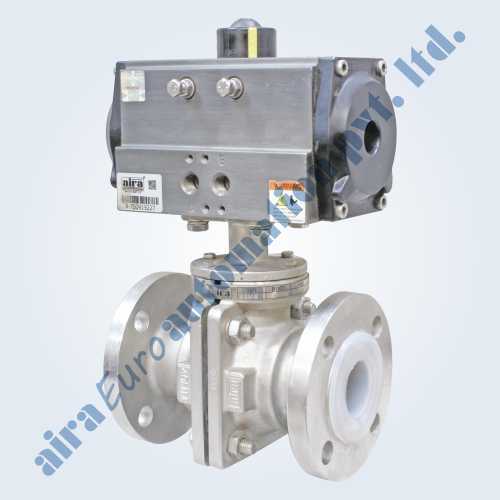

Pneumatic FEP - PFA Lined Floating Ball Valve
Pneumatic FEP - PFA Lined Floating Ball Valve Pneumatic FEP - PFA Lined Floating Ball Valve Pneumatic FEP - PFA Lined Floating Ball Valve

Pneumatic FEP - PFA Lined Floating Ball Valve

12385.00 - 333915.00 INR/Piece

Product Details:

  • Size 1/2" to 8" ( 15 MM to 200 MM )
  • Usage Chlorine, Benzene, Sulphuric Acid, Nitric Acid, Phosphoric Acid, Hydrochloric Acid & Sea Water
  • Pressure Medium Pressure
  • Connection Flanged 150 Class
  • Structure Ball
  • Product Type FEP / PFA Lined Ball Valve
  • Material Casting
  • Supply Ability : 150 Piece Per Month
  • Click to view more
X

Price And Quantity

  • 12385.00 - 333915.00 INR/Piece
  • 1 Piece

Product Specifications

  • Medium Pressure
  • Casting
  • FEP : Upto 180 Degree Celsius & PFA : Upto 230 Degree Celsius Celsius (oC)
  • Chlorine, Benzene, Sulphuric Acid, Nitric Acid, Phosphoric Acid, Hydrochloric Acid & Sea Water
  • Medium Pressure
  • Pneumatic
  • 1/2" to 8" ( 15 MM to 200 MM )
  • Flanged 150 Class
  • FEP / PFA Lined Ball Valve
  • Medium Temperature
  • Ball
  • Flanged 150 Class

Trade Information

  • ICD - Ahmedabad / JNPT - Nhava Seva
  • Western Union, Telegraphic Transfer (T/T), Cheque, Cash in Advance (CID), Cash Advance (CA), Cash Against Delivery (CAD)
  • 150 Piece Per Month
  • 1 Week
  • Yes
  • Contact us for information regarding our sample policy
  • Plastic Polythene / Corrugated or Wooden Box
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India
  • ISO 9001 : 2015 / ISO 14001 : 2015 / ISO 18001 : 2007 / CE / ATEX / SIL 3 / API 6D / BIS / ISI / Patent Registered

Product Description

Features

  • Economical Solution
  • All wetted parts completely lined with Non permeable high grade virgin FEP / PFA
  • Direct actuator mounting with out use of adaptor for longer lasting performance
  • Successfully used in Hydrochloric Acid, Phosphoric Acid, Nitric Acid, Sulfuric Acid, Acetic Acid, Sea Water, Clorine, Bromine, Brine
  • Dove tail bonding grooves for superior bonding on FEP / PFA resisting shrinkage and collapse.
  • MOC : WCB / CF8 / CF8M / CF3M (ASTM A 351 Gr.) Cast Iron / S. G. Iron / Ductile Iron / Duplex / Hast Alloys
  • Size : 1/2" to 8"
  • Pressure : Upto 8 Kgs/cm2
  • Temperature : FEP : Upto 180 °C / PFA : Upto 230 °C
  • Ends : Flanged 150#
  • Single source manufacturing and supplying of Actuator, Accessories & Automation Parts

Minimum Order Quantity

1 Piece

Model

TBP / TBF

Pressure

Upto 8 KGS/CM2

Size

1/2" to 8"

Temperature

FEP : Upto 180 Degree Celsius & PFA : Upto 230 Degree Celsius

Design

2 Piece

Country of Origin

Made in India

End Connection

Flanged 150#

Body

ASTM A216 Gr. WCB / ASTM A351 Gr. CF8 / CF8M / CF3M / Cast Iron / S. G. Iron / Ductile Iron

Ball

ASTM A351 Gr. CF8 / CF8M / CF3M

Seals

PTFE / GFT / CFT

Body Molding

FEP / PFA

Ball Molding

FEP / PFA

Leakage Class

Class VI ISO - 5208


AIRA EURO AUTOMATION PVT. LTD.
