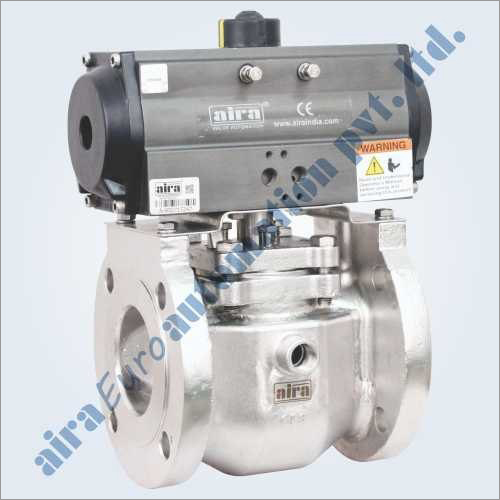

Pneumatic 2 Way Plug Valve Screwed

Pneumatic 2 Way Plug Valve Screwed
Pneumatic 2 Way Plug Valve Screwed
Send Inquiry
Product Code : 173
Brand Name : AIRA
Price And Quantity
  • Minimum Order Quantity
  • 1 Box
  • Price
  • 7390 to 39465 INR/Box
Product Specifications
  • Connection
  • Thread
  • Size
  • 1/2" to 2"
  • Product Type
  • Pneumatic 2 Way Plug Valve Screwed
  • Application
  • Air / Water / Oil / Gas & Chemical
  • Material
  • Casting
  • Valve Structure
  • Plug Valve
  • Temperature of Media
  • Upto 180 Degree Celsius Celsius (oC)
  • Power Mode
  • Pneumatic
Product Description

Pneumatic 2 Way Plug Valve Screwed

AIRA Non lubricated Sleeved Plug Valve are designed In accordance with API 599  for ANSI Class Ratings 150 & 300. Nominal sizes from 1/2" to 2 Valves Have been design for use with various combinations of material Such as : Carbon Steel, Low Carbon Steel, Special Alloy, Stainless Steel, Monel, Inconel. 2 Way and Multiport Plug Valves are available for variety of applications.

AIRA Plug valves are designed to offer superior performance in various industrial applications. Design inherent reduction in pressure drop leads to higher efficiency and better flow rates. Long service life, unmatched sealing capacity and ease of maintenance thanks to ingenious design make the AIRA plug valves a preferred choice in severe service conditions.

Minimum Order Quantity

1 Piece

Brand

AIRA

Size

1/2" to 2"

Model

GLE

Pressure

Upto 10 KGS/CM2

Media

Air / Water / Oil / Gas & Chemical

Temperature

Upto 180 Degree Celsius

Country of Origin

Made in India

Body

ASTM A216 Gr. WCB / ASTM A351 Gr. CF8 / CF8M / CF3M / Monel / Hast Alloy / Duplex

Plug

ASTM A351 Gr. CF8 / CF8M / CF3M / Monel / Hast Alloy / Duplex

Plug Sleeve

PTFE / CFT / GFT / RPTFE

Diaphragm

PTFE / CFT / GFT / RPTFE

Leakage Class

Class VI ISO - 5208

Ends

Screwed - BSP ( NPT Available On Request )
