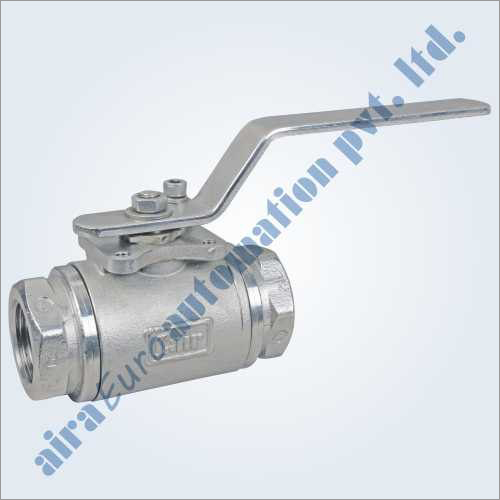

3 Piece Design High Pressure 3000 Wog Ball Valve
4160 to 16025 INR/Piece
Product Details:
- Size 1/2" to 2"
- Product Type 3 Piece Design High Pressure 3000 WOG Ball Valve
- Structure Ball
- Pressure High Pressure
- Connection Screwed - BSP / NPT
- Material Casting
- Application Air / Water / Oil / Gas & Chemical
- Supply Ability : 250 Piece Per Month
- Click to view more
X
Price And Quantity
- 1 Piece
- 4160 to 16025 INR/Piece
Product Specifications
- 3 Piece Design High Pressure 3000 WOG Ball Valve
- Ball
- High Pressure
- 1/2" to 2"
- Screwed - BSP / NPT
- Air / Water / Oil / Gas & Chemical
- Casting
Trade Information
- ICD - Ahmedabad / JNPT - Nhava Seva
- Western Union, Telegraphic Transfer (T/T), Cheque, Cash in Advance (CID), Cash Advance (CA), Cash Against Delivery (CAD)
- 250 Piece Per Month
- 1 Week
- Yes
- Contact us for information regarding our sample policy
- Plastic Polythene Bag / Corrugated or Wooden Box
- Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
- All India
Product Description
3 Piece Design High Pressure 3000 Wog Ball Valve provided by our company, is widely used for many applications. This valve is very strong and helps in reducing cavitation and pressure drop too. This valve is used in sanitary, corrosive, or industrial applications. This valve is used in those places where brass ball valves cannot be used. 3 Piece Design High Pressure 3000 Wog Ball Valve is manufactured using optimum level of raw materials, with the help of our experts. This valve is very effective and economical to use.
Specification
| Minimum Order Quantity | 1 Piece |
| Size | 1/2" to 2" - BSP |
| Model | WOH |
| Brand | AIRA |
| Country of Origin | Made in India |
| Design | 3 Piece |
| Body | ASTM A351 Gr. CF8M / CF3M |
| Ball | ASTM A351 Gr. CF8M / CF3M |
| Temprature | Upto 80 Degree Celsius |
| Pressure | CFT : Upto 100 KGS/CM2 & PEEK : Upto 200 KGS/CM2 |
| End Connection | Screwed - BSP ( NPT On Request ) |
| Seals | PEEK / CFT |
| Media | Air / Water / Oil / Gas & Chemical |
