Pneumatic Rotary Rack & Pinion Actuator Single Acting 180 Degree Rotation

6500.00 - 40000.00 INR/Piece

Get a Price/Quote

Product Details:

Size ARA - 328 to ARA - 1108
Color Gray & Black
Product Type Single Acting Rotary Actuator 180 Degree Rotation
Material Casting
Power Pneumatic
Pressure Medium Pressure
Temperature Medium Temperature
Supply Ability : 100 , , Piece Per Day
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 1 , , Piece
Price Range 6500.00 - 40000.00 INR/Piece

Product Specifications

Port Size 1/4
Pressure Medium Pressure
Working Presssure Medium Pressure
Media Other
Size ARA - 328 to ARA - 1108
Color Gray & Black
Power Pneumatic
Temperature Medium Temperature
Product Type Single Acting Rotary Actuator 180 Degree Rotation
Material Casting
Thread Type BSP

Trade Information

Payment Terms Cash Against Delivery (CAD), Cash on Delivery (COD), Western Union, Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 100 , , Piece Per Day
Delivery Time 100 Days
Sample Available Yes
Sample Policy Free samples available with shipping and taxes paid by the buyer
Packaging Details Plastic Polythene / Corrugated or Wooden Box
Main Export Market(s) Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America, Asia
Main Domestic Market All India
Certifications ISO 9001 : 2015 / ISO 14001 : 2015 / ISO 18001 : 2007 / CE / ATEX / SIL 3

Product Description

Features

Suitable typically for 3 way valves, requiring ON-OFF operation. It is available in both single acting (spring return) or double acting versions
The single acting 180 degree rotation actuator can provide center off for the 3 way ball valve, bottom entry by choosing the option of 3 position
The end stop adjustment is provided for opening and closing direction as a standard
Actuator mounting is as per ISO 5211 & Accessories to Namur Solenoid Valve

Technical Specifications

Body : Aluminium Alloy
Piston : Aluminium Alloy
Shaft : EN 8
End Cover : Aluminium Alloy
Adaptor : EN 8
Indicator : Nylon
All Seals : Hi - Nitrile
All Guide : Delrin
Operating Pressure : 3 to 8 Bar
Temperature Range : -20Ã‚Â°C to 90Ã‚Â°C
Air Supply : Filtered, dry or lubricated
Ext. Protection : Corrosion resistants to 500 hours in slated fog

Other Products in 'Pneumatic Actuator' category

Single Acting Pneumatic Rotary Rack & Pinion Actuator Material : Casting Product Type : Single Acting Rotary Actuator Size : ARADD49S to ARM400S Color : Gray & Black Power : Pneumatic Working Presssure : Medium Pressure Thread Type : BSP Price Range : 4120.00 139140.00 INR/Piece Minimum Order Quantity : 1 Temperature : Medium Temperature Pressure : Medium Pressure Port Size : 1/4 Length : 140.5 to 926.5 Millimeter (mm) Height : 98 to 503.6 Millimeter (mm) Width : 65 to 210.20 Millimeter (mm)

Send Inquiry

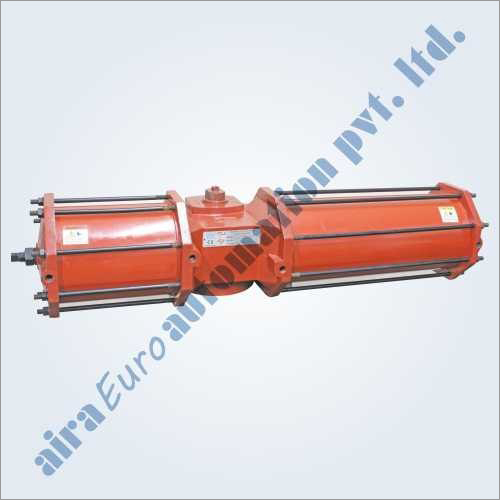

Single Acting Pneumatic Rotary Scotch & Yoke Actuator Material : Carbon Steel Product Type : Single Acting Scotch and Yoke Rotary Actuator Size : SAW114 to SAW150 Color : Red Power : Pneumatic Working Presssure : Medium Pressure Thread Type : BSP Price Range : 55860.00 1117135.00 INR/Piece Minimum Order Quantity : 1 Temperature : Medium Temperature Pressure : Medium Pressure Port Size : 1/4 Length : 830 to 3210 Millimeter (mm) Height : 185 to 720 Millimeter (mm) Usage : Air Width : 204 to 720 Millimeter (mm)

Send Inquiry

Pneumatic Rotary Rack & Pinion Actuator Stainless Steel (Double & Single Acting) Material : Casting Product Type : Pneumatic Rotary Rack & Pinion Actuator Stainless Steel (Double & Single Acting) Size : SRA45D to SRA160D Power : Pneumatic Working Presssure : Medium Pressure Thread Type : BSP Price Range : 18965.00 533100.00 INR/Piece Minimum Order Quantity : 1 Temperature : Medium Temperature Pressure : Medium Pressure Port Size : 1/4 Length : 147 to 325 Millimeter (mm) Height : 85 to 227 Millimeter (mm) Usage : Air Width : 64 to 174 Millimeter (mm)

Send Inquiry

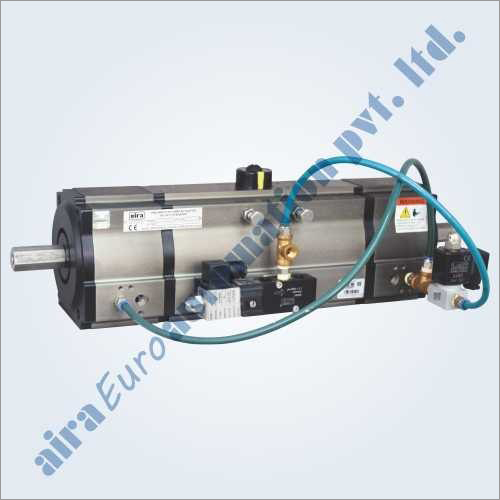

3 Position Pneumatic Rotary Actuator Double & Single Acting Material : Aluminum Product Type : Double & Single Acting 3 Position Pneumatic Rotary Actuator Size : MM350 to MM3210 Color : Gray & Black Power : Pneumatic Working Presssure : Medium Pressure Thread Type : BSP Price Range : 7595.00 209635.00 INR/Piece Minimum Order Quantity : 1 Temperature : Medium Temperature Pressure : Medium Pressure Port Size : 1/4 Length : 390 to 1155 Millimeter (mm) Height : 105 to 295 Millimeter (mm) Usage : Air
