Pneumatic Rotary Rack & Pinion Actuator Double Acting 180 Degree Rotation

5945.00 - 27230.00 INR/Piece

Get a Price/Quote

Product Details:

Length 170 to 398 Millimeter (mm)
Height 82 to 166 Millimeter (mm)
Product Type Double Acting Rotary Actuator 180 Degree Rotation
Size ARA - 328 to ARA - 1108
Color Gray & Black
Material Aluminum
Power Pneumatic
Supply Ability : 100 , , Piece Per Day
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 1 , , Piece
Price Range 5945.00 - 27230.00 INR/Piece

Product Specifications

Material Aluminum
Length 170 to 398 Millimeter (mm)
Thread Type BSP
Temperature Medium Temperature
Height 82 to 166 Millimeter (mm)
Port Size 1/4
Media Other
Working Presssure Medium Pressure
Color Gray & Black
Power Pneumatic
Size ARA - 328 to ARA - 1108
Pressure Medium Pressure
Product Type Double Acting Rotary Actuator 180 Degree Rotation

Trade Information

Payment Terms Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID), Cheque, Western Union, Cash on Delivery (COD), Telegraphic Transfer (T/T)
Supply Ability 100 , , Piece Per Day
Delivery Time 100 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Plastic Polythene / Corrugated or Wooden Box
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications ISO 9001 : 2015 / ISO 14001 : 2015 / ISO 18001 : 2007 / CE / ATEX / SIL 3

Product Description

Pneumatic Rotary Rack & Pinion Actuator Double Acting 180 Degree Rotation is a high performance actuating device for the air powered systems. It is suitable for both single as well as double acting variants of the industrial automation units. The body, piston and end cover are made up by using premium grade aluminum alloy that makes it sturdy and light in weight. Pneumatic Rotary Rack & Pinion Actuator Double Acting 180 Degree Rotation offered our company is capable to resist pressure in between 3 to 8 Bar.

Features

Suitable typically for 3 way valves, requiring ON-OFF operation. It is available in both single acting (spring return) or double acting versions
The single acting 180Ã‚Â° actuator can provide center off for the 3 way ball valve, bottom entry by choosing the option of 3 position
The end stop adjustment is provided for opening and closing direction as a standard
Actuator mounting is as per ISO 5211 & Accessories to Namur Solenoid Valve

Technical Specifications

Body : Aluminium Alloy
Piston : Aluminium Alloy
Shaft : EN 8
End Cover : Aluminium Alloy
Adaptor : EN 8
Indicator : Nylon
All Seals : Hi - Nitrile
All Guide : Delrin
Operating Pressure : 3 to 8 Bar
Temperature Range : -20 Ã‚Â°C to 90 Ã‚Â°C
Air Supply : Filtered, dry or lubricated
Ext. Protection : Corrosion resistants to 500 hours in slated forg

Other Products in 'Pneumatic Actuator' category

Single Acting Pneumatic Rotary Rack & Pinion Actuator Working Presssure : Medium Pressure Temperature : Medium Temperature Material : Casting Pressure : Medium Pressure Power : Pneumatic Minimum Order Quantity : 1 Port Size : 1/4 Thread Type : BSP Product Type : Single Acting Rotary Actuator Size : ARADD49S to ARM400S Color : Gray & Black Length : 140.5 to 926.5 Millimeter (mm) Height : 98 to 503.6 Millimeter (mm) Price Range : 4120.00 139140.00 INR/Piece Width : 65 to 210.20 Millimeter (mm) Media : Other

Send Inquiry

Single Acting (Aluminium Body) Pneumatic Rotary Scotch & Yoke Double Decker Actuator Working Presssure : Medium Pressure Temperature : Medium Temperature Material : Aluminum Pressure : Medium Pressure Power : Pneumatic Minimum Order Quantity : 1 Port Size : 1/4 Thread Type : BSP Product Type : Single Acting Scotch and Yoke Rotary Actuator Double Decker Size : JOS288 Color : Gray & Black Length : 949 Millimeter (mm) Height : 494.2 Millimeter (mm) Usage : Air Width : 221 Millimeter (mm)

Send Inquiry

Single Acting Pneumatic Rotary Scotch & Yoke Actuator Working Presssure : Medium Pressure Temperature : Medium Temperature Material : Carbon Steel Pressure : Medium Pressure Power : Pneumatic Minimum Order Quantity : 1 Port Size : 1/4 Thread Type : BSP Product Type : Single Acting Scotch and Yoke Rotary Actuator Size : SAW114 to SAW150 Color : Red Length : 830 to 3210 Millimeter (mm) Height : 185 to 720 Millimeter (mm) Price Range : 55860.00 1117135.00 INR/Piece Usage : Air Width : 204 to 720 Millimeter (mm)

Send Inquiry

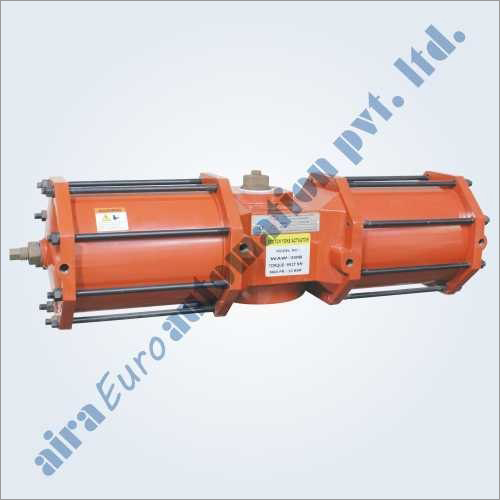

Double Acting Pneumatic Rotary Scotch & Yoke Actuator Working Presssure : Medium Pressure Temperature : Medium Temperature Material : Carbon Steel Pressure : Medium Pressure Power : Pneumatic Minimum Order Quantity : 1 Port Size : 1/4 Thread Type : BSP Product Type : Double Acting Rotary Scotch and Yoke Actuator Size : WAW14 to WAW60 Color : Red Length : 570 to 3160 Millimeter (mm) Height : 180 to 850 Millimeter (mm) Price Range : 39100.00 875835.00 INR/Piece Usage : Air
