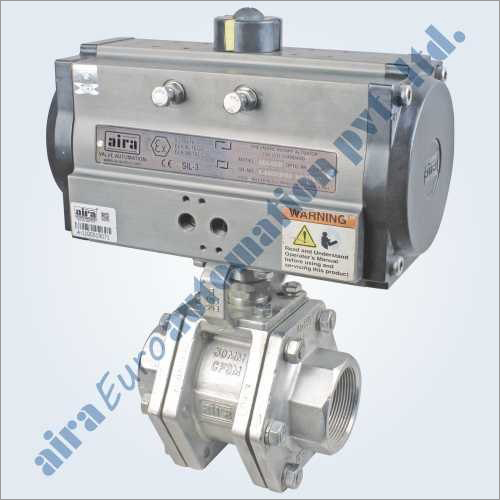

Pneumatic 3 PC Metal To Metal Ball Valve

20000.00 - 300000.00 INR/Piece

Get a Price/Quote

Product Details:

Size 1/2" to 4" ( 15 MM to 100 MM )
Usage Air / Water / Oil / Gas & Steam
Product Type 3 Piece Design Metal Seated Ball Valve
Material Casting
Power Pneumatic
Pressure Medium Pressure
Temperature High Temperature
Supply Ability : 100 , , Piece Per Month
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Price Range 20000.00 - 300000.00 INR/Piece
Minimum Order Quantity 1 , , Piece

Product Specifications

Temperature High Temperature
Product Type 3 Piece Design Metal Seated Ball Valve
Size 1/2" to 4" ( 15 MM to 100 MM )
Power Pneumatic
Working Presssure Medium Pressure
Material Casting
Usage Air / Water / Oil / Gas & Steam
Pressure Medium Pressure
Thread Type Screwed BSP / NPT & Flanged 150 Class

Trade Information

FOB Port ICD - Ahmedabad / JNPT - Nhava Seva
Payment Terms Cash Against Delivery (CAD), Western Union, Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 100 , , Piece Per Month
Delivery Time 1 Week
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Plastic Polythene / Corrugated or Wooden Box
Main Export Market(s) Western Europe, Australia, North America, Eastern Europe, Middle East, Central America, South America, Asia, Africa
Main Domestic Market All India
Certifications ISO 9001 : 2015 / ISO 14001 : 2015 / ISO 18001 : 2007 / CE / ATEX / SIL 3 / API 6D / BIS / ISI / Patent Registered

Product Description

Pneumatic 3 PC Metal To Metal Ball Valve

Pneumatic Actuator Operated Metal Seated Ball Floating Ball Valve designed for using in the serevral conditions such as high temperature & high friction fluid like abrasive fluids of oil & gas, Petroleum, Petrochemical, Chemical Power Generation, Pulp & Paper, Mining Industry.

Minimum Order Quantity	1 Piece
Pressure	Upto 10 KGS/CM2
Model	BMS - Screwed & BMF - Flanged
Country of Origin	Made in India
Body	ASTM A216 Gr. WCB / ASTM A351 Gr. CF8 / CF8M / CF3M
End Connection	Screwed - BSP / Flanged 150# (300# & 600# Available On Request)
Ball Seat	S. S. 304 / S. S. 316
Ball	ASTM A351 Gr. CF8 / CF8M / CF3M
Temperature	Upto -50 to 420 Degree Celsius (600 Degree Celsius On Request)
Leakage Class	Class IV to V
Media	Air / Steam / Hot Oil & Gas
Design	3 Piece

Other Products in 'Pneumatic Ball Valve' category

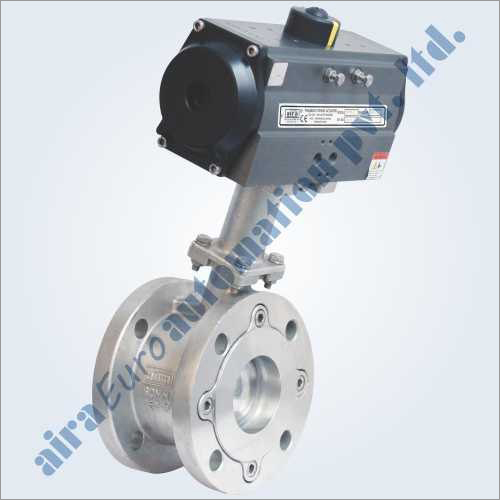

Flush Bottom Full Bore Floating Ball Valve Material : Casting Power : Pneumatic Size : 2" to 6" ( 50 MM to 150 MM ) Structure : Ball Product Type : Flush Bottom Full Bore Floating Ball Valve Minimum Order Quantity : 1 Pressure : Medium Pressure Temperature : Medium Temperature Connection : Flanged 150 Class Application : Air / Water / Oil / Gas & Chemical Working Presssure : Medium Pressure Temperature of Media : PTFE : Upto 180 Degree Celsius & PEEK : Upto 250 Degree Celsius Celsius (oC) Usage : Air / Water / Oil / Gas & Steam Thread Type : Flanged 150 Class

Send Inquiry

V Port Ball Valve Material : Casting Power : Pneumatic Size : 1" to 20" ( 25 MM to 500 MM ) Structure : Ball Product Type : V Knotch Floating Ball Valve Minimum Order Quantity : 1 Pressure : Medium Pressure Temperature : Medium Temperature Connection : Flanged 150 / 300 Class Application : Air / Water / Oil / Gas & Chemical Working Presssure : Medium Pressure Temperature of Media : PTFE : Upto 180 Degree Celsius & PEEK : Upto 250 Degree Celsius Celsius (oC) Price : nan INR/Piece Usage : Air / Water / Oil / Gas & Steam Thread Type : Flanged 150 / 300 Class

Send Inquiry

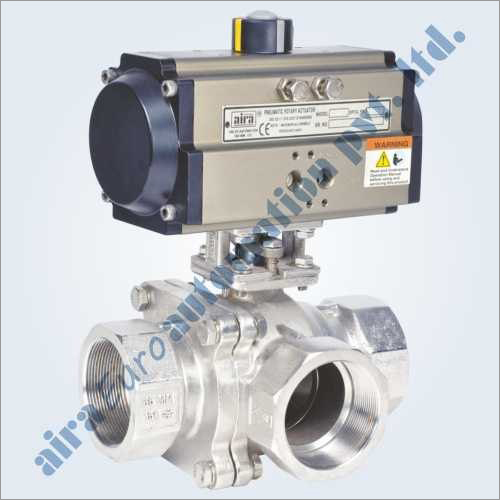

Pneumatic C Way 3 Way Floating Ball Valve Material : Casting Power : Pneumatic Size : 1/2" to 8" ( 15 MM to 200 MM ) Structure : Ball Product Type : 3 Way CW Series Ball Valve Minimum Order Quantity : 1 Pressure : Medium Pressure Temperature : Medium Temperature Connection : Screwed & Flanged 150 / 300 Class Application : Air / Water / Oil / Gas & Chemical Working Presssure : Medium Pressure Temperature of Media : PTFE : Upto 180 Degree Celsius & PEEK : Upto 250 Degree Celsius Celsius (oC) Price : nan INR/Piece Usage : Air / Water / Oil / Gas & Steam Thread Type : BSP / NPT & Flanged 150 / 300 Class
