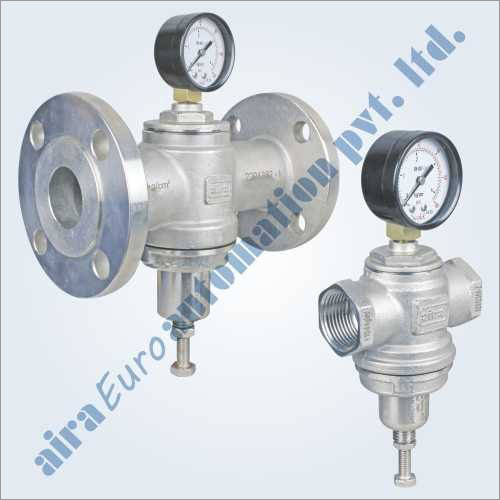

Direct Activated Semi Pilot Pressure Reducing Valve

1590 to 20560 INR/Piece

Get a Price/Quote

Product Details:

Structure Pressure Reducing
Product Type Direct Activated Semi Pilot Pressure Reducing Valve
Size 1/2" to 2.1/2"
Material Casting
Power Manual
Pressure Medium Pressure
Working Temperature Medium
Supply Ability : 2500 , , Piece Per Month
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 1 , , Piece
Price 1590 to 20560 INR/Piece

Product Specifications

Application Water & Gas
Material Casting
Power Manual
Size 1/2" to 2.1/2"
Working Temperature Medium
Structure Pressure Reducing
Surface Electrophoresis
Pressure Medium Pressure
Product Type Direct Activated Semi Pilot Pressure Reducing Valve

Trade Information

FOB Port ICD - Ahmedabad / JNPT - Nhava Seva
Payment Terms Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Western Union
Supply Ability 2500 , , Piece Per Month
Delivery Time 2 - 3 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Plastic Polythene Bag / Corrugated or Wooden Box
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India

Product Description

Direct Activated Semi Pilot Pressure Reducing Valve

As part of a high rise building, when water moves through a pipeline, the pressure of the water is increased due to gravity. Thus, the SDT model can regulate the pressure. Pressure Reducing Valve regulates pressure in order to meet flow requirements while regulating pressure.

Minimum Order Quantity	1 Piece
Media	Water & Gas
Brand	AIRA
Size	1/2" to 2"
Temperature	Upto 85 Degree Celsius
Model Name/Number	DDS / DDF
Gauge Size	1/4" - BSP
Country of Origin	Made in India
Seat	NBR / Viton
Max Inlet Pressure	12 KGS/CM2
Pressure Adjusting Range	1 ~ 6 KGS/CM2 / 4 ~ 10 18 KGS/CM2
End Connection	Screwed - BSP (NPT On Request) / Flanged 150#
Bonnet	Aluminium / ASTM A351 Gr. CF8 / CF8M / CF3M
Body	ASTM A351 Gr. CF8 / CF8 / CF3M
Trims	ASTM A351 Gr. CF8 / CF8 / CF3M
Diaphragm	NBR / Viton
