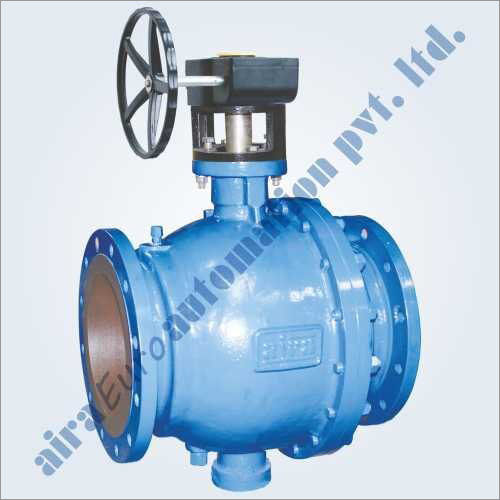

2 Piece Design Spring Loaded Trunnion Mounted Ball Valve
Product Details:
- Connection Flanged 150 / 300 / 600 Class
- Size 4" to 24"
- Structure Ball
- Product Type 2 Piece Design Spring Loaded Trunnion Mounted Ball Valve
- Pressure Medium Pressure
- Material Casting
- Application Air / Water / Oil / Gas & Chemical
- Supply Ability : 10 Piece Per Month
- Click to view more
Price And Quantity
- 50000 to 2500000 INR/Piece
- 1 Piece
Product Specifications
- Casting
- Flanged 150 / 300 / 600 Class
- Air / Water / Oil / Gas & Chemical
- 2 Piece Design Spring Loaded Trunnion Mounted Ball Valve
- Medium Pressure
- 4" to 24"
- Ball
Trade Information
- ICD - Ahmedabad / JNPT - Nhava Seva
- Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Western Union
- 10 Piece Per Month
- 3 Week
- Yes
- Contact us for information regarding our sample policy
- Plastic Polythene Bag / Corrugated or Wooden Box
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
Product Description
2 Piece Design Spring Loaded Trunnion Mounted Ball Valve
"AIRA" Gear Operated the inconel spring trunnion mounted ball valve is a robust API 6D monogrammed 2 Piece design with bi-directional sealing. CBB Model trunnion mounted ball valves are designed for general industrial and chemical applications, and include the following features standard. Chemical, Oil, Petrochemical, Gas, Pulp, Paper Processing & Other Industries.
DBB (Single Piston Design)
DIB - 1 : Double isolation and bleed valve
(Double Piston Design On Request)
DIB - 2 : Double isolation and bleed valve
One side Single Piston (Uni-directional) & One side double piston (Bi-directional)
Specification
| Minimum Order Quantity | 1 Piece |
| Size | 4" to 24" |
| Brand | AIRA |
| Pressure | Upto 10 KGS/CM2 / As Per 300# / 600 |
| Model Name/Number | CBB |
| Design | 2 Piece / 3 Piece Available On Request |
| Connector Type | Flanged End |
| End Connection | Flanged - 150# / 300# / 600 |
| Temperature | PTFE : Upto 180 Degree Celsius |
| Media | Air / Water / Oil / Gas & Chemical |
| Bore Type | Full Bore |
| Number of Ways | 2 Way |
| Testing Standard | API - 6D |
| Country of Origin | Made in India |
| Body | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8 / CF8M / CF3M |
| Ball | ASTM A351 Gr. CF8 / CF8M / CF3M |
| Seals | PTFE / GFT / CFT / Devlon |
| Springs | Inconel |
| Design & Manufacturere | API 6D |
| Valve Face to Face Dimension | API 6D |
| Flange Standard Conformity | ASME B 16.5 150# / 300# / 600# |
| Leakage Class | Class VI ISO - 5208 |
