2-2 Way Piston Piston Type High Pressure Solenoid Valve

nan INR/Box

Get a Price/Quote

Product Details:

Size 1/2" to 2"
Product Type 2/2 Way Piston Piston Type High Pressure Solenoid Valve
Material Casting
Way Type Two-Way
Processing Type Standard
Pressure High Pressure
Temperature of Media Medium.
Supply Ability : 500 , , Box Per Month
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Price nan INR/Box
Minimum Order Quantity 1 , , Box

Product Specifications

Way Type Two-Way
Product Type 2/2 Way Piston Piston Type High Pressure Solenoid Valve
Processing Type Standard
Pressure High Pressure
Size 1/2" to 2"
Temperature of Media Medium.
Material Casting

Trade Information

FOB Port ICD - Ahmedabad / JNPT - Nhava Seva
Payment Terms Cash Against Delivery (CAD), Telegraphic Transfer (T/T), Western Union, Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 500 , , Box Per Month
Delivery Time 1 Week
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Plastic Polythene Bag / Corrugated Box
Main Export Market(s) Western Europe, Middle East, Central America, South America, Asia, Eastern Europe, North America, Australia, Africa
Main Domestic Market All India

Product Description

2-Way piston piston type high pressure solenoid valve is independently operated by an electrical switch, and it can make a precise control over the direction or flow of air or liquid. It is suitable for many fluid power systems, including pneumatic and hydraulic systems. This valve can be integrated well into the equipment very well. The valve's performance is quite effective and safe. It is made of lightweight material, performs in a prompt manner, and has a low cost. The valve responds fairly quickly.

Specification

Minimum Order Quantity	1 Piece
Pressure	4 to 110 KGS/CM2
Size	1/2" to 2"
Media	Hot Water / LD Oil / Air / Water / Corrosive Media
Brand	AIRA
Country of Origin	Made in India
Model	HPQX
Coil Insulation	"H" Class
Temperature	Upto 85 Degree Celsius (Upto 120 Degree Celsius On Request)
Coil Rating	Continuous Rated
Body	ASTM A351 Gr. CF8 / CF8M / CF3M
Seat	PTFE / Viton
Valve Position	Normally Close Only
Coil Voltage	12,24,48,110,230V AC / DC
Coil Encloser	IP 67 (Flame Proof / Explosion Proof As Per IS / IEC 60079-1 STD for Gas II C Zone 1 & 2

Other Products in 'Solenoid Valve' category

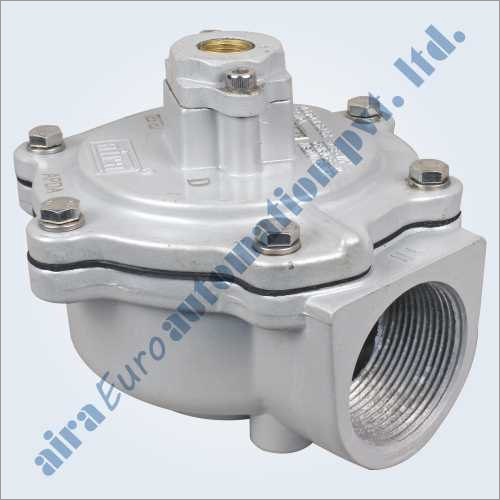

2-2 Way Angle Type Pilot Operated Pulse Valve Price : nan INR/Box Minimum Order Quantity : 1 Pressure : Medium Pressure Way Type : TwoWay Material : Casting Size : 1/2" to 3" Processing Type : Standard Product Type : 2/2 Way Angle Type Pilot Operated Pulse Valve Valve Structure : Diaphragm Valve Temperature of Media : Medium. Connection Type : Thread Working Temperature : NBR : Upto 85 Degree Celsius (Viton : Upto 125 Degree Celsius On Request) Celsius (oC)
